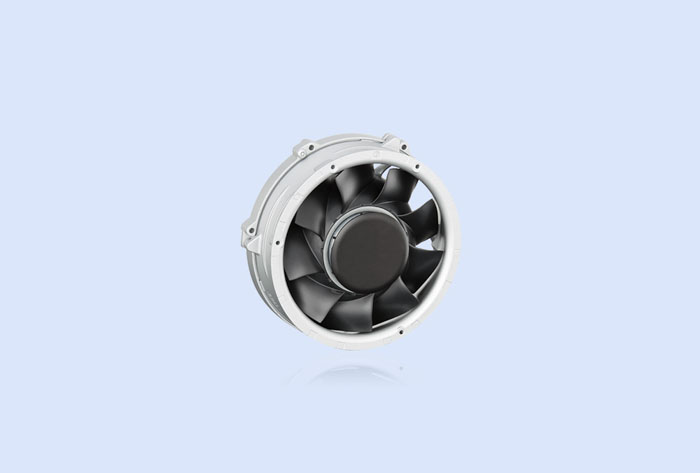

Diagonal fans
The compact diagonal fans from ebm papst can
- with an air volume of 200 m³/h to 1,100 m³/h,
- at a counter pressure of 0 Pa to 1,500 Pa,
- with a size of 119×119 mm to 200 mm,
- from a sound power level of 60 dB(A),
- at an operating temperature of -20 °C to 65 °C,
- with a nominal voltage of 9 VDC – 72 VDC or 100 VAC – 130 VAC
- and at a frequency of 50/60z
be operated.
We have various product variants in stock.
Please contact us for further technical information or special requirements!
Product description
With ebm-papst diagonal fans, the air is discharged diagonally, which means that the air is highly compressed. This enables a high volume flow with high pressure build-up and low operating noise.
Options with an alarm or speedometer signal are also available.
Areas of use are cooling-intensive applications.
Technical data
| Voltage |
100 VAC – 130 VAC ,9 VCD – 72 VDC |
|---|---|
| Frequency |
50/60 Hz |
| Air flow rate |
200 – 1.100³/h |
| Power consumption |
19 – 360 W |
| Counter pressure |
0 – 1.500 Pa |
| EC technology |
Various control and regulation functions |
| Enclosure |
Aluminium ,Die-cast aluminium ,Metal ,Plastic ,Plastic + metal ,Sendzimir galvanised sheet steel |
| Fan impeller |
Aluminium ,Hot-dip galvanised sheet steel ,Metal ,Plastic ,Sendzimir galvanised sheet steel |
| Support spider |
Plastic |
| Rotor |
Black painted ,Galvanised ,Thick layer passivated |
| Wall ring |
Metal ,plastic-coated ,Steel plate |
